Current Limiter Allows Safe Testing of Zener Diodes, LEDs
by Lewis Loflin

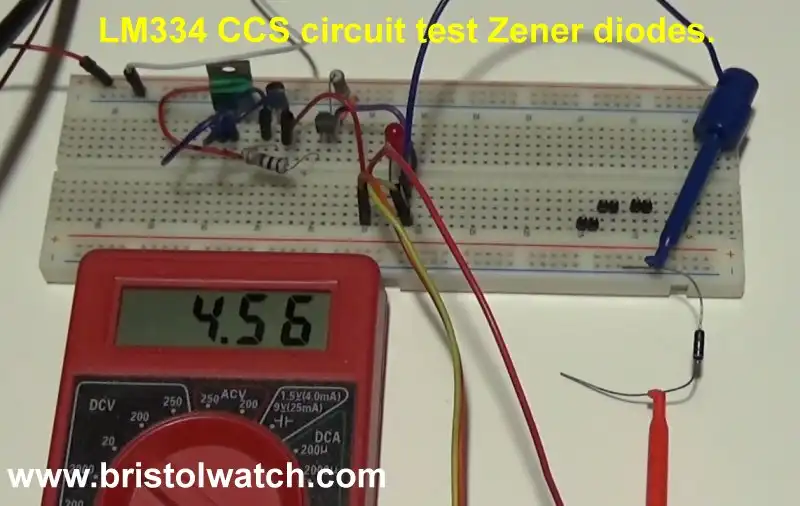

In Fig. 1 I am testing the breakdown voltage of a Zener diode. By using a constant current source from an LM334 or LM317 I am assured of a stable measurement and protection for the Zener diode.
This also works for testing light emitting diodes.
Fig. 2 LM334 Zener diode test circuit.

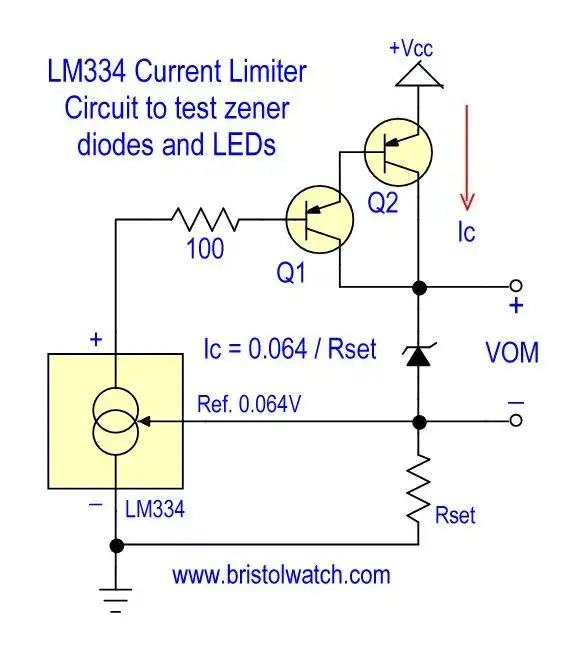

Fig. 2 is the circuit I used. The current value through the Zener is 0.064 / Rset. 3.3 Ohms produces ~19mA. 2.7 Ohms ~24mA, 1 Ohm 64mA.
Simply connect the Zener diode or LED and measure the voltage across the device.
Fig. 3 LM317 Zener diode test circuit.
Fig. 3 works the same way as the LM334 circuit. The current I = 1.25V / R. If R = 47 Ohms then I = 26.6mA.
