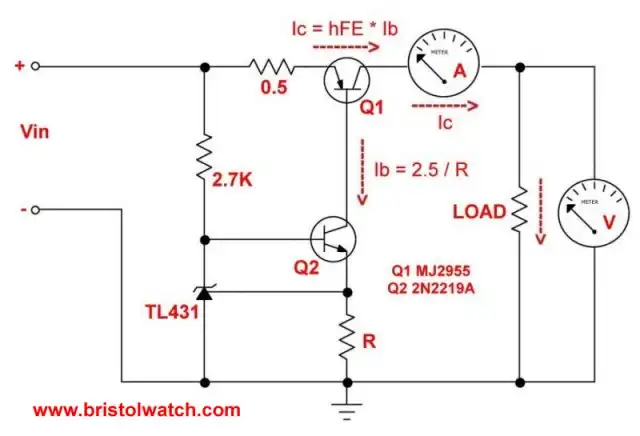

Fig. 2 TL431 based sink-current regulator driving high current constant current source.
TL431 Sink Mode Constant Current Circuits
by Lewis Loflin
Related see TL431 Battery Charger Voltage Detector Circuits Schematics

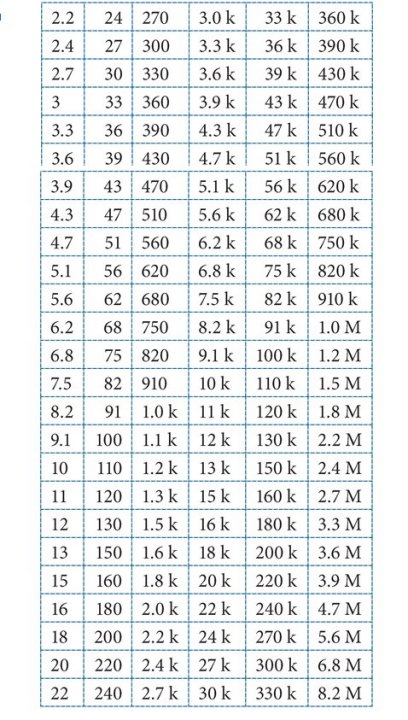

See standard resistor values chart resistor_values.jpg
The TL431 can be used in its "sink" configuration to control a constant current source as shown above.

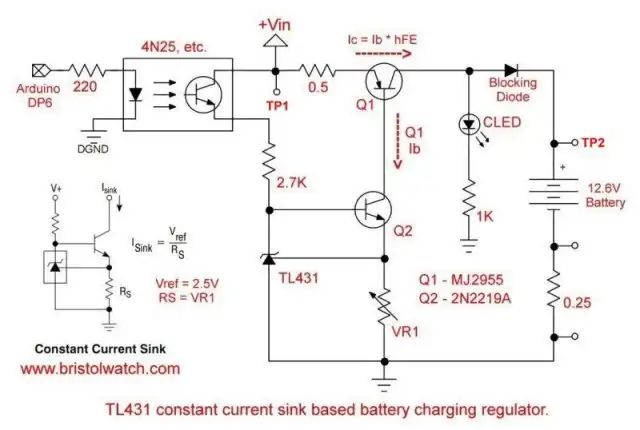

Fig. 3 TL431 based sink-current regulator driving high current constant current
source with optocoupler ON-OFF control.
Click for larger image.

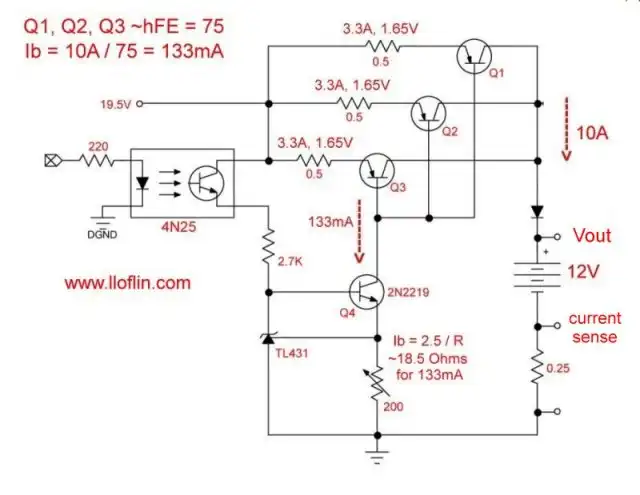

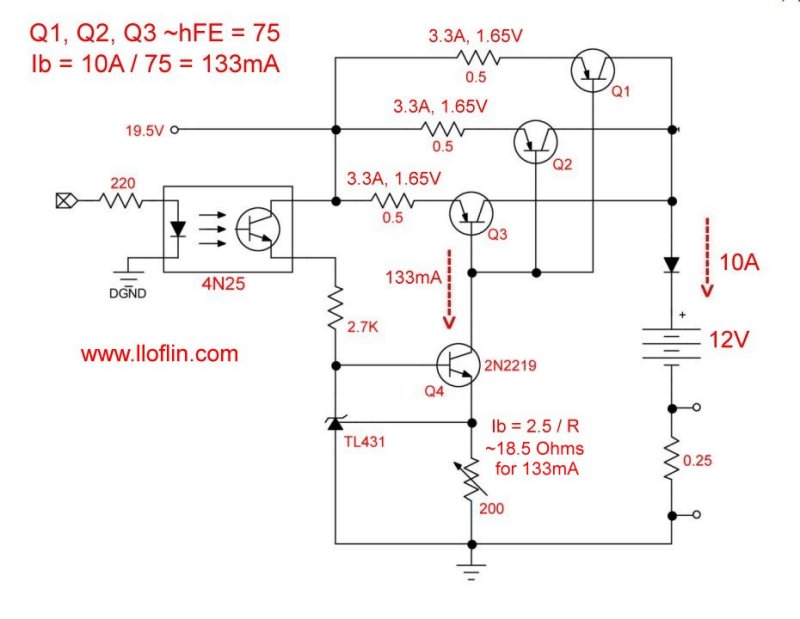

Fig. 4 TL431 current sink regulator driving three parallel transistor high current
constant current source with optocoupler ON-OFF control.
Click for larger image.
Note the voltage across the 0.25-Ohm resistor can be used by a microcontroller to measure current.
- TL431 Battery Charger Voltage Detector Circuits Schematics
- Arduino Constant Current H-Bridge Motor Control
- TL431 Battery Charger Voltage Detector Circuits Schematics
- TL431 Sink Mode Constant Current Circuits
Fig. 5
Click for larger image.
In Fig. 5 a low value resistor and an LM358 op-amp enables a microcontroller to measure battery charge current. This can monitor both charge current and load current.
